Aluminum Bar Grating

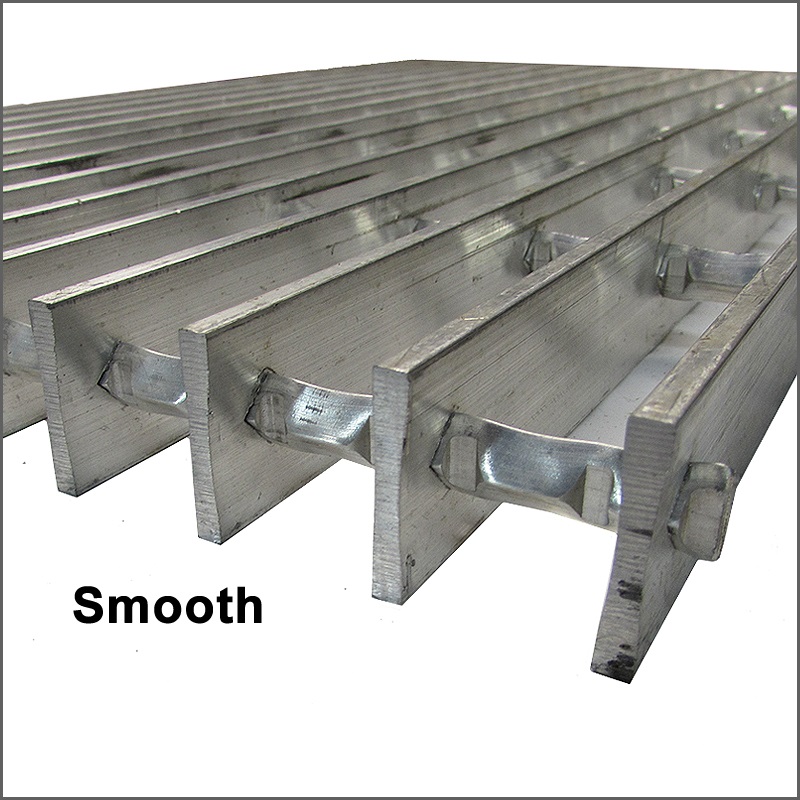

Aluminum Bar Grating, also known as Swagged Aluminum Bar Grate is light weight, yet strong and durable for all load bearing applications that need high corrosion resistance. Aluminum Brating is available in a variety of bearing bar spacing, thicknesses and heights depending on applications and load requirements. Available in either smooth top or serrated for added slip resistance. See PDF specifications by clicking aluminum grating load tables.

  • Specifications: 19SR4 / 19AS4, Alloy 6063-T6 for bearing bars per ASTM B-221, Alloy 6063 for cross bars per ASTM B-221
  • Applications: Walkways, flooring, ramps, bridge flooring, trench and drainage covers, mezzanines, platforms, stair treads, etc.
  • Workability: Easy to Weld, Cut, Form and Machine
  • Mechanical Properties: Load Charts available upon request
  • How is it measured? bar thickness X bar height, Bearing bars run parallel to each other, the length of the panel.
  • Available Stock Sizes:
    3ft x 1ft, 3ft x 4ft, 3ft x 8ft, 3ft x 12ft, 3ft x 24ft, or Cut to Size.

Custom Sizes and configurations are also available – Stair Treads, Trench Covers, etc.

Ordering Note: Stock sizes may vary +/- 1/2″

Top of Form



Get your hands on our Aluminum Bar Grating is completely recyclable, lightweight, and resistant to corrosion. This quality product is excellent for both industrial and architectural applications due to its unrivaled strength-to-weight ratio. We produce aluminum grating from 6063 or 6061 alloys and come in four different product varieties.

Our Aluminum Bar Grating manufacturer’s standard mill finishes are offered for aluminum goods. For more corrosive or architectural applications, optional anodizing, chemical cleaning, or powder-coated finishes are available.

When used in industrial or architectural applications, bar grating adds safety, strength, longevity, and character. Catwalks, manufacturing floors, platforms, railing infill panels, and stair treads all frequently feature it.

These grating panels are made up of parallel crossbars that are perpendicularly welded, swage-locked, or press-locked together with a series of bearing bars. Bar grating is a tough, high-performing, low-maintenance, and slip-resistant product that can support weights from vehicles or pedestrians.

Aluminum, Carbon Steel, Powder Coated Carbon Steel, Galvanized Steel, and Stainless Steel are examples of common material kinds. Additionally, we provide a quality product at an affordable price and deliver at your doorstep with no hassles. We export several types of the aluminum grating; one type includes lock grating. It has bars that we assemble mechanically together. We lock these aluminum grating bars with a hydraulic processing press.

xiaaluplate offers lightweight bars that are useful for a number of applications and areas. We are top producers of aluminum sheets and plates at the most affordable rates.
