Steel fiber is a type of short, discrete reinforcement for concrete and other composite materials. Instead of using a continuous network of rebar or wire mesh, millions of tiny, high-tensile-strength steel fibers are mixed randomly throughout the concrete.
Description

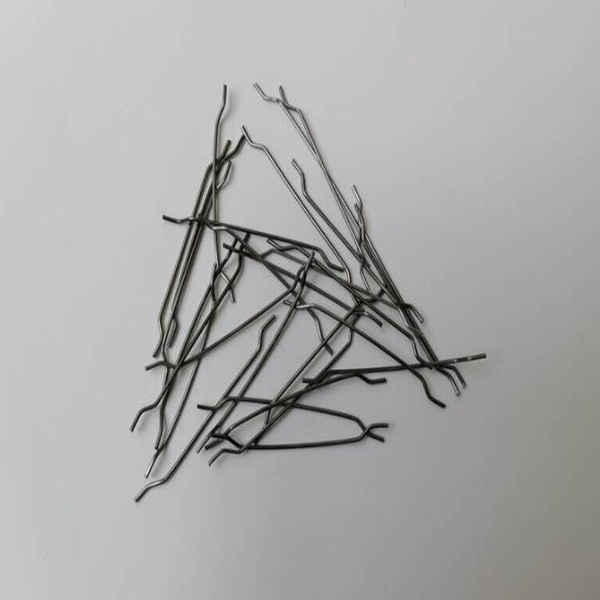

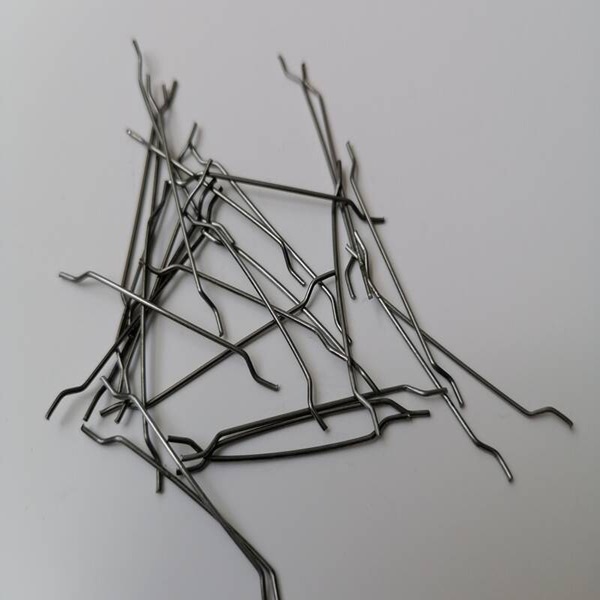

Steel fiber refers to fibers produced by cutting fine steel wires, shearing cold-rolled strip steel, milling steel ingots, or rapid cooling of molten steel, with an aspect ratio (the ratio of fiber length to its diameter; when the fiber cross-section is non-circular, the diameter of the equivalent circular cross-section is used) of 40 to 80.
Cut steel fibers, produced using cold drawing technology below the metal crystal temperature with low-carbon alloy as the base material, can achieve tensile strengths of 1150-3000 MPa.
They are widely used for reinforcing industrial floors (logistics, cold storage, outdoor, warehousing) and improving crack conditions.
General Parameter
| Products | Diameter | Length | L/D ratio | TS | Type | Package |
| TP-05030 | 0.50mm | 30mm | 60 | >1150MPa | Loose | 20kg/bag,1ton/pallet |
| TP-05530 | 0.55mm | 55mm | 55 | >1150MPa | Loose | 20kg/bag,1ton/pallet |
| TP-05035 | 0.50mm | 50mm | 70 | >1150MPa | Loose | 20kg/bag,1ton/pallet |
| TP-05535 | 0.55mm | 35mm | 64 | >1150MPa | Loose | 20kg/bag,1ton/pallet |
| TP-07550 | 0.75mm | 50mm | 67 | >1150MPa | Loose | 20kg/bag,1ton/pallet |
| TP-07560 | 0.75mm | 60mm | 80 | >1150MPa | Loose | 20kg/bag,1ton/pallet |
| TP-09050 | 0.90mm | 50mm | 56 | >1150MPa | Loose | 20kg/bag,1ton/pallet |
| TP-09060 | 0.90mm | 60mm | 67 | >1150MPa | Loose | 20kg/bag,1ton/pallet |
| TP-10050 | 1.00mm | 50mm | 50 | >1150MPa | Loose | 20kg/bag,1ton/pallet |

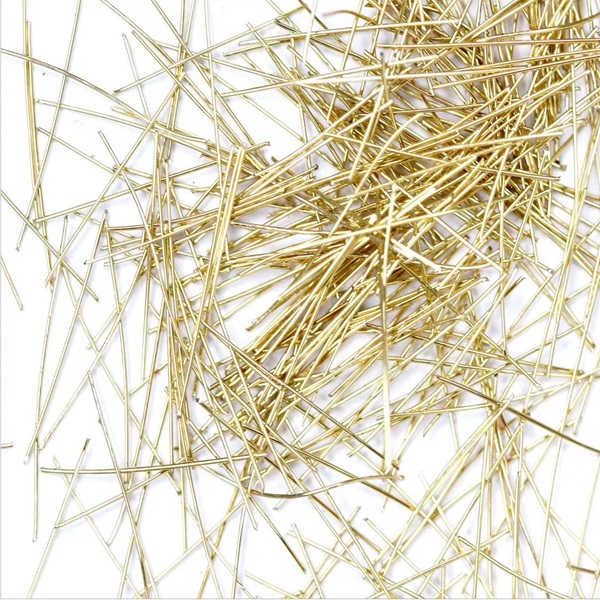

Copper-plated micro-wire steel fiber is an important part of reactive powder concrete. RPC has a new type of material with ultra-high strength, high toughness, high durability, and good volume stability.
It is a high-tech concrete composed of materials and fiber reinforced materials. Copper-plated micro-wire steel fiber is mainly used for high-speed railways, RPC cover plates and important engineering components.
It has high tensile strength, abrasion resistance, crack resistance, bending resistance, fracture resistance, and impact resistance.
Application field:
1.Highway bridge
2.Hydraulic dam
3. Railway sleepers
4.Port and Ocean Engineering
5.Tunnel and mine engineering
6.Pipeline engineering
7.Other construction projects
The metal steel fiber shotcrete replaces the hanging net construction, which not only saves the cost of hanging nets, but also reduces the risk of rockfall injury.
Steel fiber is a new type of composite material widely used in construction, road, bridge, and other engineering fields.
Its main component is steel, which is processed into long, thin fibers using a special process, resulting in excellent mechanical properties and durability.
The advent of steel fiber has effectively improved the strength and toughness of concrete and other materials, gradually becoming an indispensable material in modern engineering construction.
